IEM 9000 - Acoustic Drive

Proaudio

← See all In-Ear Monitor

iem9000

in-ear monitor

FEATURES

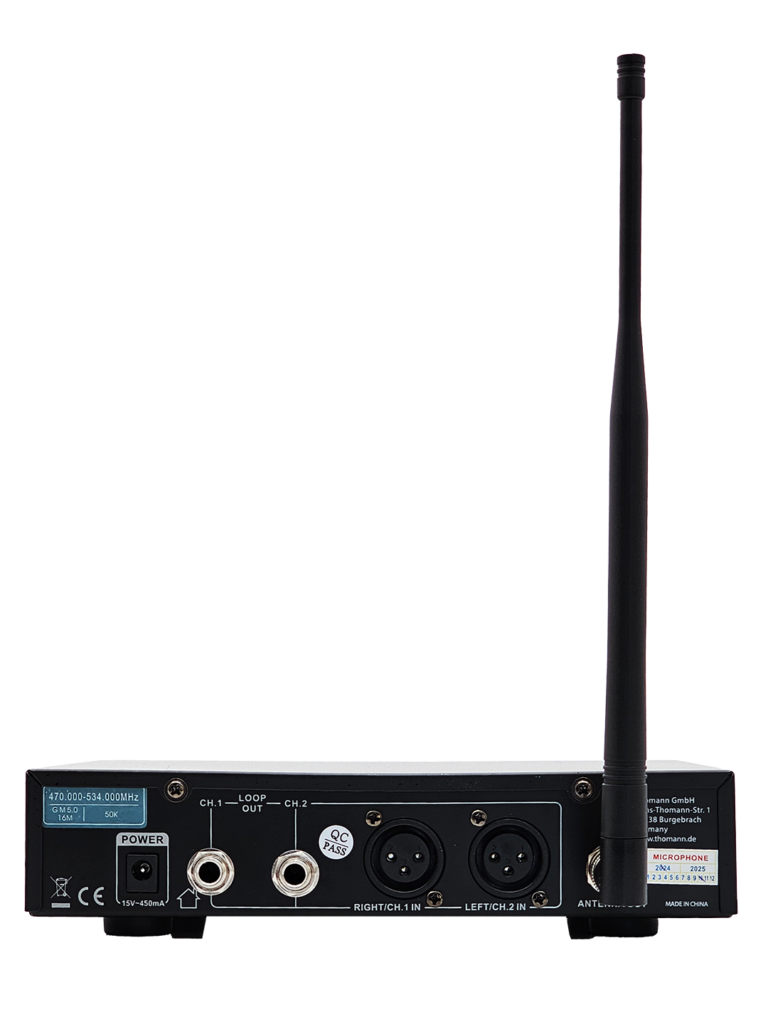

IEM-9000S TRANSMITTER

CARRIER FREQUENCY: UHF400–814MHz
RF OUTPUT POWER: 10/50 mW
NOMINAL FREQUENCY: ±40KHz
AUDIO INPUT IMPEDANCE: 20KΩ
NOMINAL INPUT LEVEL: -10dBV; 0dBV (ATT-10dBV)
MAXIMAL INPUT LEVEL: 10dBV; 20dBV (ATT-10dBV)
MODULATION MODE: PLL SYNTHESIZED
LCD DISPLAY: AF LEVEL, STEREO/MONO, RF ATTENUATION LEVEL, GROUP/CHANNEL, FREQUENCY
AUDIO INPUT: 2 BALANCED XLR/2 6.35mm CONNECTOR
AUDIO OUTPUT: 1 3.5mm AND 1 6.35mm STEREO JACK
POWER SUPPLY: 100~240V
PRODUCT SIZE: 210*190*49mm

IEM-9000R RECEIVER

SELECT SWITCH: 0DB/-10DB
EARPHONES OUTPUT: 60mW
MIN LOAD IMPEDANCE: 16Ω
LCD DISPLAY: RF LEVEL, AF LEVEL, BATTERY LEVEL, STEREO/MONO, SQ, GROUP/CHANNEL, FREQUENCY
OUTPUT CONNECTOR: 3.5mm STEREO JACK
POWER SUPPLY: 2AA
OPERATION HOUR: OVER 12 HOURS

EXPERIENCE DEMOS NEAR YOU

IEM9000

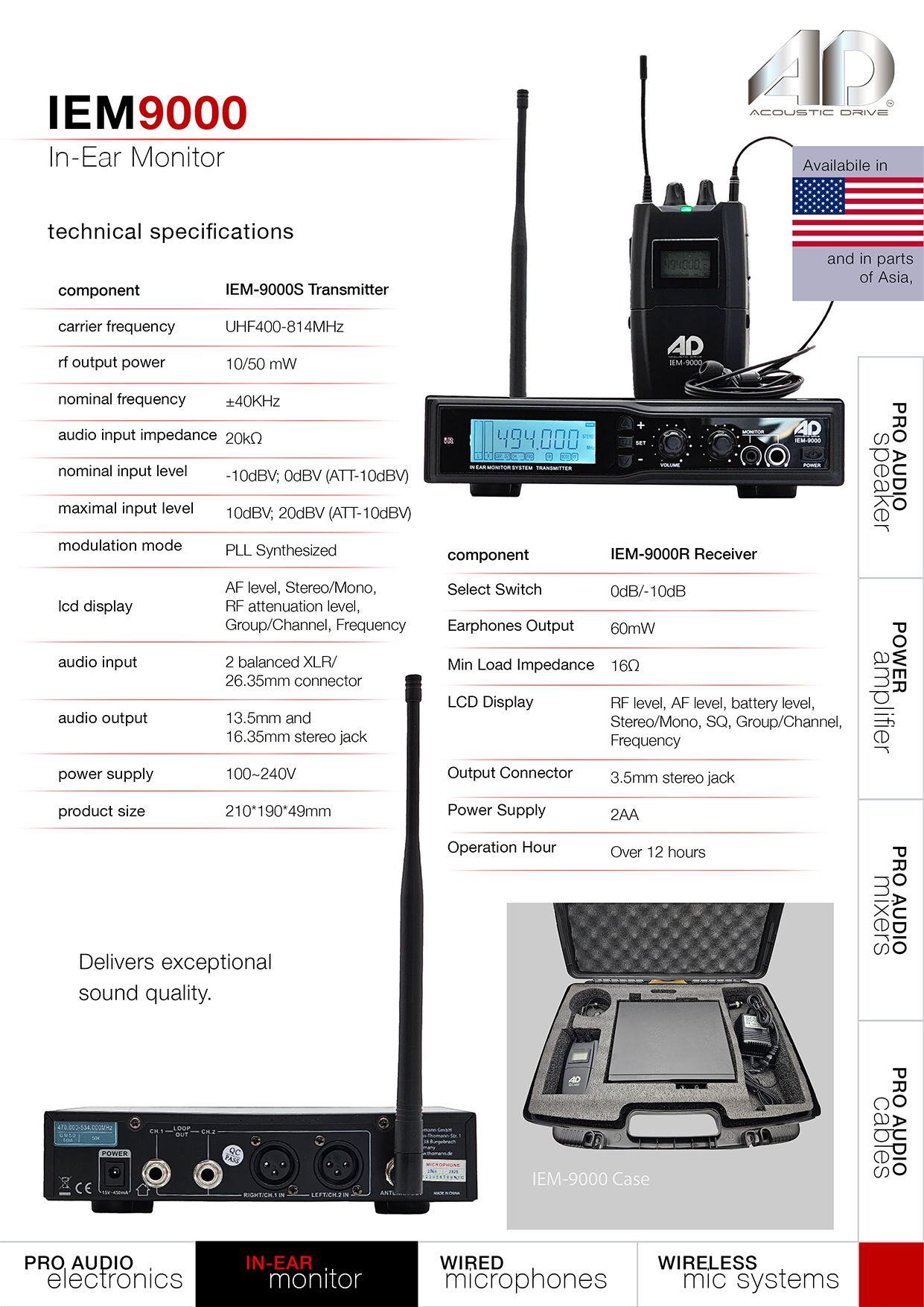

PRODUCT SPECIFICATIONS

IEM9000

IN EAR MONITOR

IEM9000 In-Ear Monitor

KNOW WHERE TO REQUEST A DEMO

Contact us for Distributorship or Retail Inquiries
