UX9000s Wireless Mic - Acoustic Drive

Proaudio

← See all UX Wireless Microphone

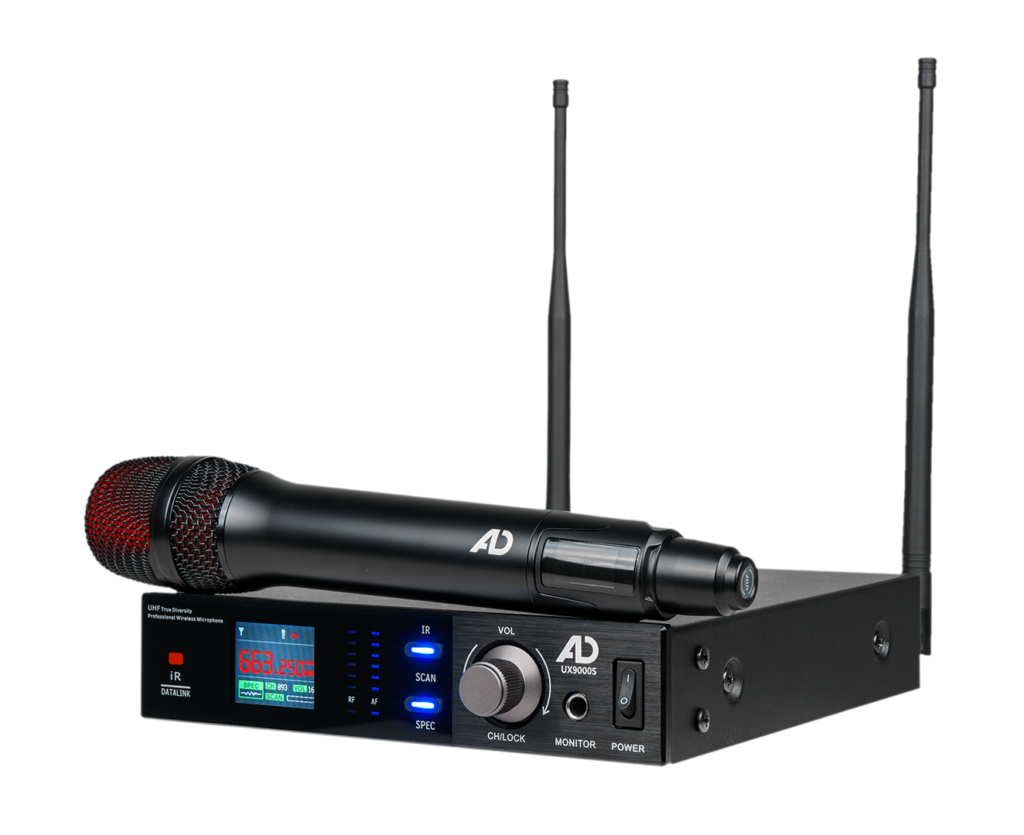

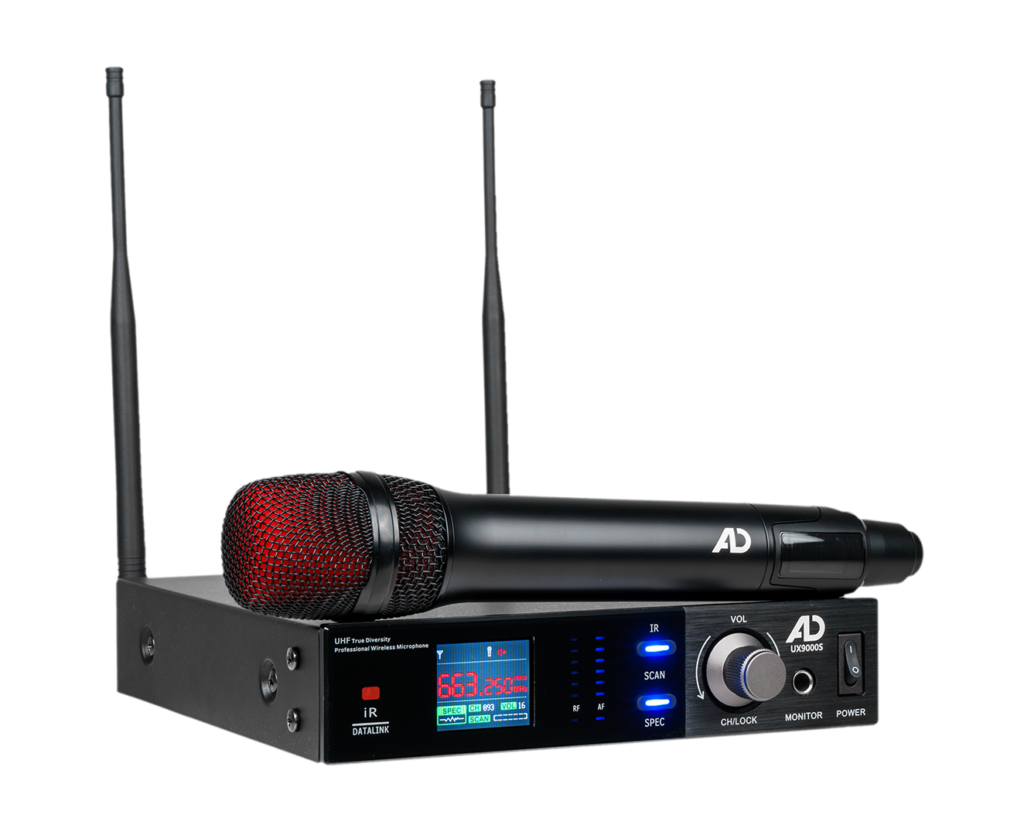

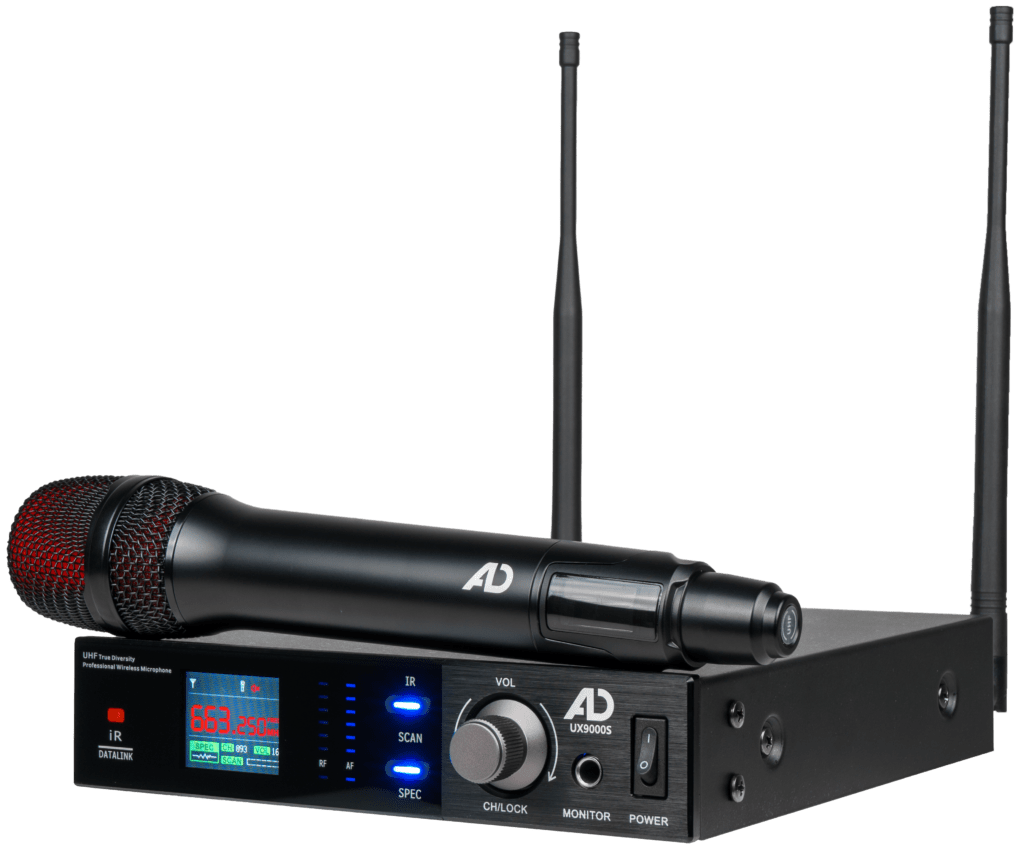

UX9000S

PROFESSIONAL WIRELESS MICROPHONE

FEATURES

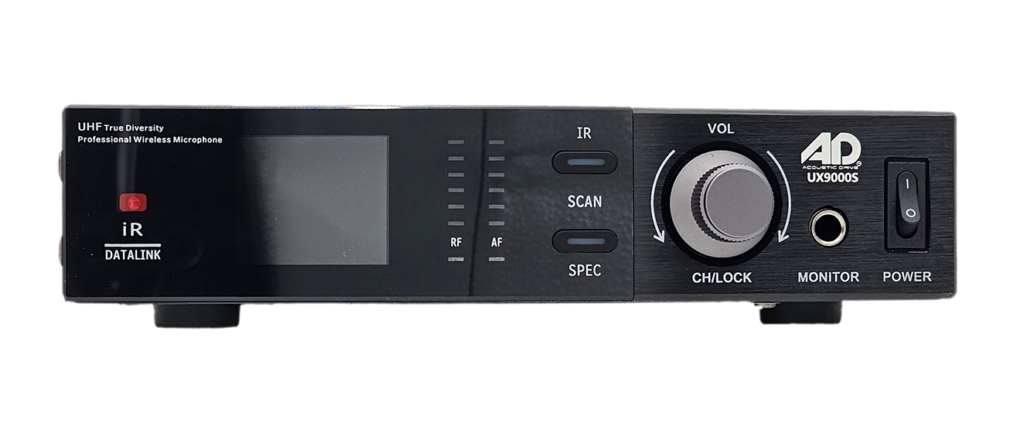

RECEIVER

CARRIER FREQUENCY: UHF 440–960MHz
CHANNELS TOTAL: 100
OSCILLATION MODE: PLL SYNTHESIZED
DYNAMIC RANGE: >110dB
T.H.D.: <0.5%
FREQUENCY RESPONSE: 50Hz–16 kHz ± 3dB
S/N RATIO: >90dB
OPERATION DISTANCE: 150m (20 PCS OF STACKED MICS CAN BE USED AT THE SAME TIME)
POWER SUPPLY: 12 V 1000 mA
AUDIO OUTPUT JACK: 16.3mm MIX OUTPUT & 2 x XLR BALANCE OUTPUT
RECEIVER TYPE: TRUE DIVERSITY
PRODUCT SIZE: 210mm × 200mm × 42mm

HANDHELD TRANSMITTER

TRANSMISSION POWER: 10mW OR 5mW
MODULATION MODE: PLL SYNTHESIZED
BATTERY TYPE: 2 × AA
IMAGE AND SPURIOUS REJECTION: >50dB
FREQUENCY RESPONSE: 60Hz–15kHz ± 3dB
PRODUCT SIZE: Φ55×258mm / Φ50×260mm

BODYPACK TRANSMITTER

TRANSMISSION POWER: 10 mW
MODULATION MODE: PLL SYNTHESIZED
BATTERY TYPE: 2 × AA
IMAGE AND SPURIOUS REJECTION: >50dB
FREQUENCY RESPONSE: 60Hz–15kHz ± 3dB
PRODUCT SIZE: 68mm × 28mm × 85mm

EXPERIENCE DEMOS NEAR YOU

UX9000s WIRELESS MIC

PRODUCT SPECIFICATIONS

UX9000s

Professional wired
Microphone

UX9000s Professional Wireless Microphone

KNOW WHERE TO REQUEST A DEMO

Contact us for Distributorship or Retail Inquiries
