UX9000

PROFESSIONAL WIRELESS MICROPHONE

FEATURES

RECEIVER

CARRIER FREQUENCY: UHF 440–960MHz
CHANNELS TOTAL: 200
OSCILLATION MODE: PLL SYNTHESIZED
DYNAMIC RANGE: >110dB
T.H.D.: <0.5%
FREQUENCY RESPONSE: 50Hz–16kHz ± 3dB
S/N RATIO: >90dB
OPERATION DISTANCE: 150m (20PCS STACKED MICS USED AT THE SAME TIME)
POWER SUPPLY: 12V, 1000mA
AUDIO OUTPUT JACK: 1 × 6.3mm MIX OUTPUT, 2 × XLR BALANCED OUTPUT, 2 × XLR BALANCED OUTPUT
RECEIVER TYPE: TRUE DIVERSITY
PRODUCT SIZE: 480mm × 221mm × 45mm

HANDHELD TRANSMITTER

TRANSMISSION POWER: 10mW OR 5mW
MODULATION MODE: PLL SYNTHESIZED
BATTERY TYPE: 2 × AA
IMAGE & SPURIOUS REJECTION: >50dB
FREQUENCY RESPONSE: 60Hz–15kHz ± 3dB
PRODUCT SIZE: Φ55mm × 258mm / Φ50mm × 260mm

BODY PACK TRANSMITTER

TRANSMISSION POWER: 10mW OR 5mW
MODULATION MODE: PLL SYNTHESIZED
BATTERY TYPE: 2 × AA
IMAGE & SPURIOUS REJECTION: >50dB
FREQUENCY RESPONSE: 60Hz–15kHz ± 3dB
PRODUCT SIZE: 68mm × 28mm × 85mm

EXPERIENCE DEMOS NEAR YOU

UX9000 WIRELESS MIC

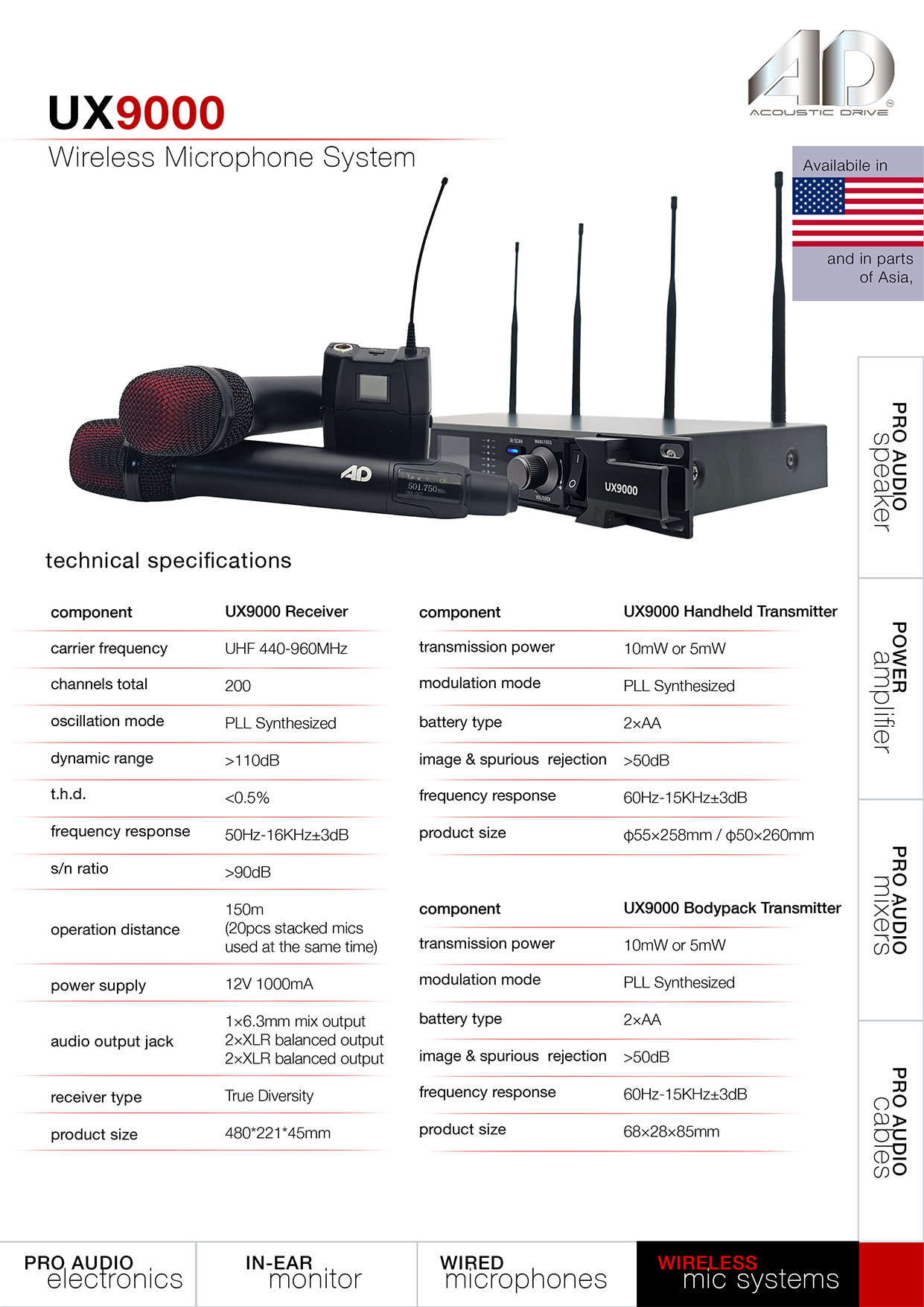

PRODUCT SPECIFICATIONS
