SIGNATURE 16 - Acoustic Drive

SIGNATURE16

FEATURES

10 MICROPHONE PREAMPS
16 X 1/4" INPUTS, 8 MONOLINE INPUTS, 4 STEREO LINE INPUTS
4 RCA INPUTS (2XSTEREO PAIR), 1 X 1/4" FOOTSWITCH INPUT
CONNECTIVITY OPTIONS INCLUDE 1/4" CONNECTIONS OR RCA TERMINATIONS FOR THE CONNECTIONS
MONO CHANNELS EQUIPPED WITH 3-BAND EQs, STEREO LINE INPUTS FEATURE 3-BAND EQs
CHANNELS 1-6 BOAST SINGLE-KNOB COMPRESSORS, AND ALL MICROPHONE INPUTS SUPPORT PHANTOM POWER

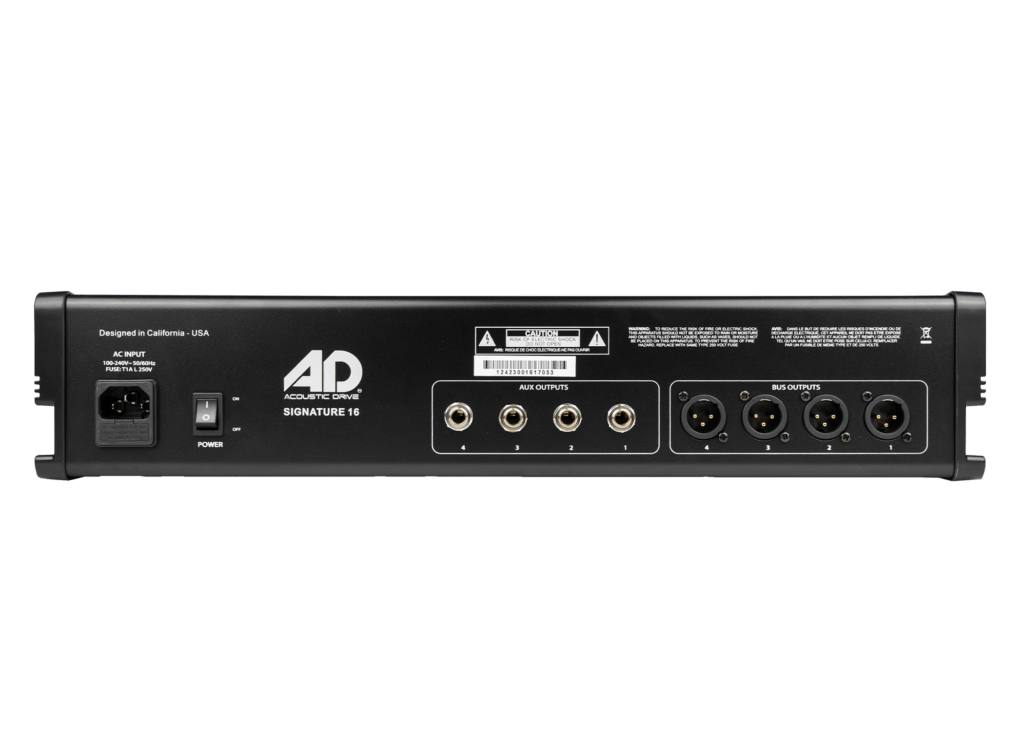

2 X XLR MAIN OUTPUTS, 2 X 1/4" MAIN OUTPUTS, 2 X 1/4" CTL ROOM OUTPUTS, 4 X 1/4" AUXILIARY OUTPUTS, 1 X 1/4" HEADPHONS OUTPUT
GAIN RANGE: 0 TO -50 dB
FREQUENCY RESPONSE: 20Hz TO 20kHz
GAIN SELECTION: 20 dB TO -30 dB
THD+N: <0.02% (20 dB GAIN, 0 dBu OUT, A-WEIGHTED)
USB AUDIO: TYPE-B, 2-CHANNEL I/O, 44.1 OR 48 kHz SAMPLE RATE
